Boron carbide

Boron carbide is a compound that contains boron and carbon, especially B4C; an extremely hard, non-metallic, black crystalline compound or solid solution. Only diamond is harder. In addition to its hardness property, boron carbide has the physical properties of corrosion resistance, heat strength, low specific gravity and high elastic modulus. It is used as an abrasive, neutron absorber for nuclear reactors, and as an alloying agent in composite structural materials.

$2,600.00$3,600.00 / MT

Boron carbide

Boron carbide is a compound that contains boron and carbon, especially B4C; an extremely hard, non-metallic, black crystalline compound or solid solution. Only diamond is harder. In addition to its hardness property, boron carbide has the physical properties of corrosion resistance, heat strength, low specific gravity and high elastic modulus. It is used as an abrasive, neutron absorber for nuclear reactors, and as an alloying agent in composite structural materials.

Chemical Composition

Size Approx Size(microns) Chemical Composition(%)
B% C% Fe2O3 B4C%
F36 600-500 78-81 17-22 0.2-0.4 97-99
F40 500-425 78-81 17-22 0.2-0.4 97-99
F46 425-355 78-81 17-22 0.2-0.4 97-99
F54 355-300 78-81 17-22 0.2-0.4 97-99
F60 300-250 78-81 17-22 0.2-0.4 97-99
F80 212-180 78-81 17-22 0.2-0.4 97-99
F100 150-125 78-81 17-22 0.2-0.4 97-99
F120 125-106 78-80 17-22 0.2-0.4 96-98
F150 106-75 78-80 17-22 0.2-0.4 96-98
F180 75-63 78-80 17-22 0.2-0.4 96-98
F230 53.0±3.0um 77-80 17-22 0.3-0.5 96-97
F240 44.5±2.0um 77-80 17-22 0.3-0.5 96-97
F280 36.5±1.5um 77-80 17-22 0.3-0.5 96-97
F320 29.2±1.5um 76-79 17-21 0.3-0.6 95-97
F360 22.8±1.5um 76-79 17-21 0.3-0.6 95-97
F400 17.3±1.0um 75-79 17-21 0.4-0.8 94-96
F500 12.8±1.0um 76-79 18-22 0.3-0.7 94-97
F600 9.3±1.0um 74-78 17-21 0.4-0.9 92-94
F800 6.5±1.0um 74-78 17-21 0.4-0.9 92-94
F1000 4.5±0.8um 75-78 18-22 0.1-0.8 90-94
F1200 3.0±0.5um 75-78 18-22 0.1-0.8 90-94
F1500 2.0±0.4um 75-78 18-22 0.1-0.8 90-94
F2000 1.2±0.3um 75-78 18-22 0.1-0.8 90-94

Physical Properties

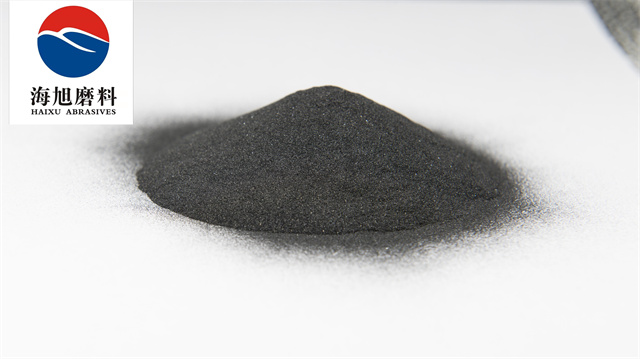

Appearance Black powder
Molecular Weight (g/mol.) 55.25515
Specific Heat (cal-mol-c) 12.5
Knoop Hardness 2750
Mohs Hardness 9.6
Micro Hardness 4950kgf/mm2
Density & phase 2.52 g/cm (Solid)
Melting point 2350 °C (2623.15 K)
Boiling point >3500 °C (>3773.15 K)
Solubility In Water Insoluble
Crystal Structure Rhombohedral

Application



Boron Carbide is well suited to a variety of industrial applications including:
Abrasives for lapping and ultrasonic cutting
Anti-oxidant in carbon-bonded refractory mixes
Armor
Nuclear applications such as reactor control rods and neutron absorbing shielding
Wear parts such as blasting nozzles, wire-drawing dies, powdered metal and ceramic forming dies, thread guides
